FFS Machines for Granules MODEL 0520


FFS 0520 FFS 2050 FFS 50100 AUGER DOSING


This machine is made in INDIA



State of the art:
A state of the art PLC controlled versatile fully automatic vertical form fill seal sachet packaging machine (VFFS machine) suitable for packing free-flowing powders/granules in single-use sachets for food service, pharmaceutical, and other industries. The machine uses state of the art electronic motion control technology for precise multi-axis control of its various functions.

APPLICATIONS
This sachet packing machine is ideal for producing personalised or standard sugar sachets, salt sachets, pepper sachets, spices sachets, ready-made coffee mix sachets, etc, and other food service portion packs specially for hotels, airlines, restaurants and fast food outlets. It is also the ideal machine for packaging silica gel desiccant in sachets for industrial and pharmaceutical uses.

It has an extremely small foot-print. One machine requires only 10 square feet - 1 square metre of floor space. Multiple installations of the FFS 0520 offer a better production alternative to using one multi-track machine, technically and financially.

Intelligent PLC control:
The machine has two dedicated PLC's for accurate sealing & cutting as per the sachet design, many optional advanced features such as microprocessor controlled sachet length, electronic speed control, automatic output sachet counting & batch creating, intelligent status warning devices for various parameters with shut-down and error reporting, etc.

Advanced Volumetric Filler:
The volumetric cup filler is PLC controlled and has a unique PAUSE function after every drop to ensure 100% filling accuracy at any speed.

COMPLIANCE WITH EUROPEAN MACHINERY DIRECTIVES
The machine displayed on this page is classified within the relevant EU directives and further conforms with the specified EU harmonized standards and in compliance with the relevant directive, the technical file of the product displayed on this page is held within the EU with our authorised representative.



OUTSTANDING FEATURES


#    Simple operation. No training required for start-up, operation or maintenance. The detailed illustrated manual supplied with the machine is enough to DO-IT-YOURSELF!

Demonstration of FFS 0520 powder & granules packing machine


#    Internationally well-known reputed components used in the construction of the machine.

#    Spares available on demand at reasonable prices. Technical support available around the year, around the clock!

#    Supplied ready to use, mounted on movable castor wheels. It does not require any installation. Simply place it where you want and start production! This machine does not require any compressor, hydraulic system, or special electrical wiring.

#    Available for 220 volts AC single phase / 110 volts AC single phase power supply.

#   Full GMP top of the line model - PLC controlled, all parameters changeable at the touch of a button, with all contact and non-contact parts in aisi 316 / 304 stainless steel as per GMP norms.

#     Two inline printing option available (1) hot foil ribbon printing for printing 2 line alphanumeric dates / batch codes (2) Inline flexo-graphic printing device for producing sachets for salt, pepper and sugar for hotels and restaurants PERSONALISED with name / logo printed in a single colour.

#     Accurate filling and easy weight adjustment with a high precision motorised, PLC controlled volumetric cup filler, with a unique PAUSE function after every drop to ensure precise filling.

#     Easy-Change ™ Technology perfected by us is used on this machine. That means that you can change the film width, filled weight, sachet length - all within minutes!

#     Silent operation - the machines cannot be heard while in operation even a short distance away.

#     Electrical & mechanical protections available for compliance as per European / American standards.

SIKRI Machines come with a number of accessories.Please view these to decide what you need with your machine.

CLICK HERE To get a quotation from us as per YOUR specific requirement!

TECHNICAL SPECIFICATION

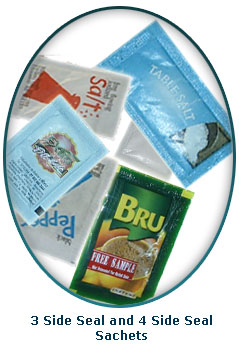

Pouch shape .... 3- Side seal / 4- Side seal / Centre seal

End cut pattern .... Straight / Zigzag / Easy Tear Notch / Perforation

Packing Size Range .... Repeat Length : 30 mm to 50 mm / 40 mm to 70 mm / 55 mm to 90 mm. Film Width : 50 mm to 120 mm

Packed Weight Range .... 0.5 grams to 5 grams / 1 gram to 10 grams / 10 grams to 20 grams

Packing Material .... Heat sealable laminated film like PET + PE, Foil + PE paper + Foil + PE , PET + Foil +PE, Paper+ PE etc.

Electricals .... AC 220V 50Hz / 110V 60 Hz Single Phase Available with electronic speed control. Temperature Controllers : Analogue / PID.
Safety : Features available to comply with international safety norms.

Machine Dimensions .... L x W x H : 750 x 560 x 1800 (mm) (approx.)

Crate Dimensions .... L x W x H 965 x 760 x 1900 (mm) (approx.)

Machine Weight .... 350 Kg. Net. 430 Kg. Gross (approx.)
