FFS Machines for Granules MODEL 50100


FFS 0520 FFS 2050 FFS 50100 AUGER DOSING


This machine is made in INDIA

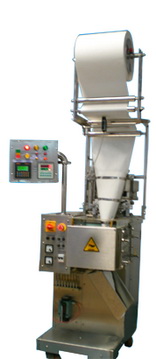

A versatile fully automatic vertical form fill seal machine suitable for packing powders and granules in pouches. The machine is ideal for tea, coffee, rice, short pasta, detergents, spices, sugar, milk powder, fruit drink, chemicals etc.

APPLICATIONS
This pouch packing machine is ideal for producing standard pouches of grocery products like sugar,salt, pepper, spices, cake mixes, soups, tea, coffee, drink mixes, detergents, cleaning chemicals, etc. in mainly pillow pack pouches from 50 grams to 100 grams packed weight

The machine has a choice of two Dosing systems:
- Volumetric cup filler for granules
- Auger filler for non free-flowing powders

The machine is equipped with advanced features like warning device cum indicator for vertical & horizontal heaters, end of reel sensor and hopper level indicator with auto stop.

All these modern techniques make the machine ideally suitable for a wide variety of industries needing sachet packaging.

COMPLIANCE WITH EUROPEAN MACHINERY DIRECTIVES
The machine displayed on this page is classified within the relevant EU directives and further conforms with the specified EU harmonized standards and in compliance with the relevant directive, the technical file of the product displayed on this page is held within the EU with our authorised representative.



OUTSTANDING FEATURES


#    Simple operation. No training required for start-up, operation or maintenance. The detailed illustrated manual supplied with the machine is enough to DO-IT-YOURSELF!

#    Internationally well-known reputed components used in the construction of the machine.

#    Spares available on demand at reasonable prices. Technical support available around the year, around the clock!

#    Supplied ready to use, mounted on movable castor wheels. It does not require any installation. Simply place it where you want and start production! This machine does not require any compressor, hydraulic system, or special electrical wiring.

#    Available for 220 volts AC single phase / 110 volts AC single phase power supply.

#     Full GMP top of the line model - electronic microprocessor controlled all parameters changeable at the touch of a button, with all contact and non-contact parts in aisi 316/304 stainless steel as per GMP norms.

#     Inline printing option available - hot foil ribbon printing for printing 2 line alphanumeric dates / batch codes

#     PID automatic temperature controller makes the sealing temperature accurate.

#     Electronic eye-mark registration device with stepping motor with ATM -19 controllers for sealing and cutting the outer bag on the packaging film eye mark.

#     Safety features such as emergency stop switch, heater covers, sealer covers and forming collar covers as per European safety requirements.

#     Silent operation - the machines cannot be heard while in operation even a short Distance away.

SIKRI Machines come with a number of accessories.Please view these to decide what you need with your machine.

CLICK HERE To get a quotation from us as per YOUR specific requirement!

TECHNICAL SPECIFICATION

Pouch shape .... 4- Side seal / 3- Side seal / Centre seal

End cut pattern .... Straight / Zigzag / Easy Tear Notch / Perforation

Packing Size .... Repeat length: 130 to 200 mm 200 to 260 mm
Film width: 50 to 240mm

Packed Weight .... 50 gm to 100 gm

Peak Packing Speed .... Up to 60 sachets per minute

Packing Material .... Heat sealable laminated film like PET + PE, Foil + PE paper + Foil + PE , PET + Foil +PE,Paper+ PE etc.

Electricals .... AC 220V 50 Hz Single Phase
Motor: ½ Kw.
Heaters: 4×350 watt /4 × 500 watt / 2×150 watt+2×500 watt

Machine Dimensions .... L×W×H : 750 × 815 × 1880 (mm) (approx.)

Crate Dimensions .... L×W×H : 965 × 850 × 1800 (mm) (approx.)

Machine Weight .... 380 Kgs. Net/450 Kgs. Gross (approx.)
