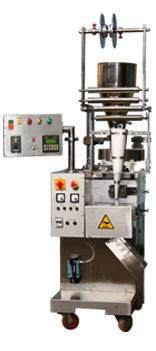

FFS Machines for Plain Tea Bags without String and Tag MODEL-FFS 0520 9CH - PLC Controlled


SIRKI FILLER SEALER FFS 05209CH FFS 052011CH OUTER ENVELOPES FFS 052012CH TEA BAG MATERIALS


This machine is made in INDIA



A range of PLC controlled low cost machines to pack tea, herbal products, yerba mate, oolong tea and also granulated coffee in plain filter paper tea bags without string and tag .This is a standard machine for small sachet packaging modified to pack tea & herbal products in heat sealable paper tea- bags without string and tag. It is a most versatile machine capable of high-speed production up to 100 sachets per minute.

The machine is available with 3- side seal arrangement suitable for packaging 1 gram to 5 grams of tea and herbs in filter paper heat-sealable sachets, with a peak packing speed up to 100 sachets per minute. The machine measures, forms, fills, seals and cuts the packed tea bags automatically.

The machine is equipped with a SELEC PLC with advanced features such as electronic speed control, automatic output deviation, intelligent status warning devices for various Parameters, etc.

To pack these teabags further in an outer envelope we offer two revolutionary low cost solutions.
- Automatic Outer Envelope packer with Manual Feeding.
- Manual Outer Envelope packer.

The machine has the facility for quick cleaning of the machine for changing from one herbal product to another.

COMPLIANCE WITH EUROPEAN MACHINERY DIRECTIVES
The machine displayed on this page is classified within the relevant EU directives and further conforms with the specified EU harmonized standards and in compliance with the relevant directive, the technical file of the product displayed on this page is held within the EU with our authorised representative.


To pack these teabags further in an outer envelope we offer low cost solutions.                      Watch the Video of FFS 0520 9CH
outer envelope


OUTSTANDING FEATURES


#     Simple PLC operation. No training required for start-up, operation or maintenance. The detailed illustrated manual supplied with the machine is enough to DO-IT-YOURSELF!

#     Internationally well-known reputed components used in the construction of the machine

#    Spares available on demand at reasonable prices. Technical support available around the year, around the clock!

#     Supplied ready to use, mounted on movable castor wheels. It does not require any installation. Simply place it where you want and start production! This machine does not require any compressor, hydraulic system, or special external electrical wiring.

#     Available for 220 volts AC single phase / 110 volts AC single phase power supply.

#     Available fully clad with stainless steel aisi 202 or 304, and stainless steel contact parts.

#     Accurate filling and easy weight adjustment with a high precision PLC controlled volumetric cup filler. Available in both fixed weight and micro-adjustment option at extra cost.

#     PID automatic temperature control through the advanced PLC makes the sealing temperature accurate.

#     Option for electronic length setting device with stepping motor with ATM -19 controllers for sealing and cutting the outer bag on the packaging film eye mark or by setting the data.

#     PLC controlled safety features such as emergency stop switch, heater covers, sealer covers and forming collar covers as per European safety requirements.

#     Silent operation - the machines cannot be heard while in operation even a short distance away.

SIKRI Machines come with a number of accessories.Please view these to decide what you need with your machine.

CLICK HERE To get a quotation from us as per YOUR specific requirement!

TECHNICAL SPECIFICATION

Sealing Type .... 4- side seal / 3- side seal / pillow pack

Packing Size .... Repeat length: 60to 90 mm
Film Width: 125 & 145mm


Packing Weight .... 0.5 gm to 5gm

Packing Speed .... Up to 100 sachets per minute

Packing Material .... Tea bag Filter Paper

Electricals .... AC 220V 50 Hz Single Phase
Motor: ½ Kw.
Heaters: 4×350 watt/2×150 watt+2×350 watt


Machine Dimensions .... L×W×H : 750 × 815 × 1940 (mm)

Crate Dimensions .... L×W×H : 965 × 850 × 1800 (mm)

Machine Weight .... 380 Kgs. Net/450 Kgs. Gross
