Visit our factory for a live demonstration of this machine
|
|

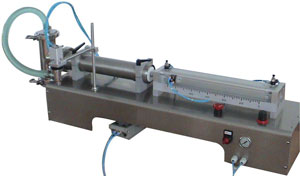

This machine is used for filling liquids .which includes from the free flowing liquids to very viscous products on the same machine. The machine can accommodate wide range of container shapes in volumes from 5 ml. to 100 ml / 100 ml to 500 ml. The machine has a flow rate with accuracies up to ±0.5% dependent upon dose size and type of product.
|
|
| |
OUTSTANDING FEATURES |
| |
| # The machine yields very high quality at an economical price. |
|
| |
| # The machine has the capacity to fill wide range of products and containers. |
| |
| # The machine is easily movable, having small footprint. |
| |
| # The machine eliminates product waste and easily stores recipe driven product set-ups. |
|
| |
| # The clean up and change over is done very easily. |
| |
| # The machine can be integrated at a later date into a fully automatic modular system. |
| |
| # The machine has a compact, portable configuration. |
| |
| # It is built in automatic cycle timer for semi-automatic operation. |
| |
| # It has a 304 / 316L stainless steel with hut-off filling nozzle. |
| |
| CLICK HERE To get a quotation from us as per YOUR specific requirement! |
| |
TECHNICAL SPECIFICATION |
| |
|
|
|
| Article |
.... |
Liquid |
 |
| |
|
|
| Model |
.... |
DXDG-500Y |
| |
|
|
| Range of measure |
.... |
10-500ml |
| |
|
|
| Method of measuring |
.... |
Fluidity pump |
| |
|
|
| Fill caliber |
.... |
≥ 5mm |
| |
|
|
| Speed |
.... |
20-60 times/min |
| |
|
|
| Power |
.... |
300w |
| |
|
|
| Power supply |
.... |
Ac 220v 50hz |
| |
|
|
| Weight |
.... |
N.w 45 kg: g.w 60 kg |
| |
|
|
| Dimensions |
.... |
L:350mm W:600mm H:400mm |
| |
|
|
| Size of packing case |
.... |
L:550mm W:800 mm H:600mm |
| |
|
|
|
|
| |
|
|
| |
